Logic Analyzer 8 CH, 24MHz with USB cable, compatible with Arduino

Name: Logic Analyzer 8 CH, 24MHz with USB cable, compatible with Arduino
Brand: AZ-Delivery
SKU: C 2-7
Price: 13.99 EUR
Availability: OutOfStock

AZ-Delivery

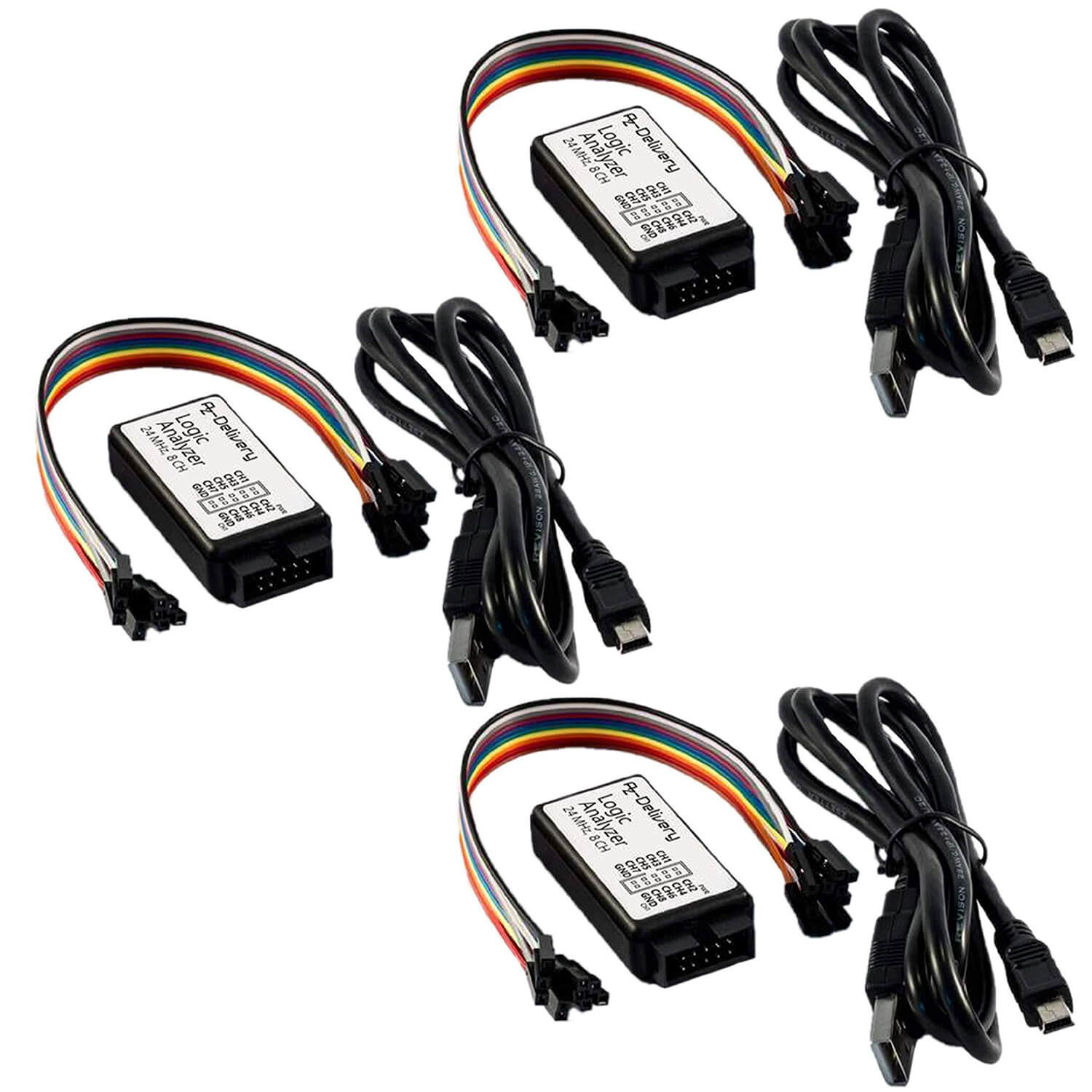

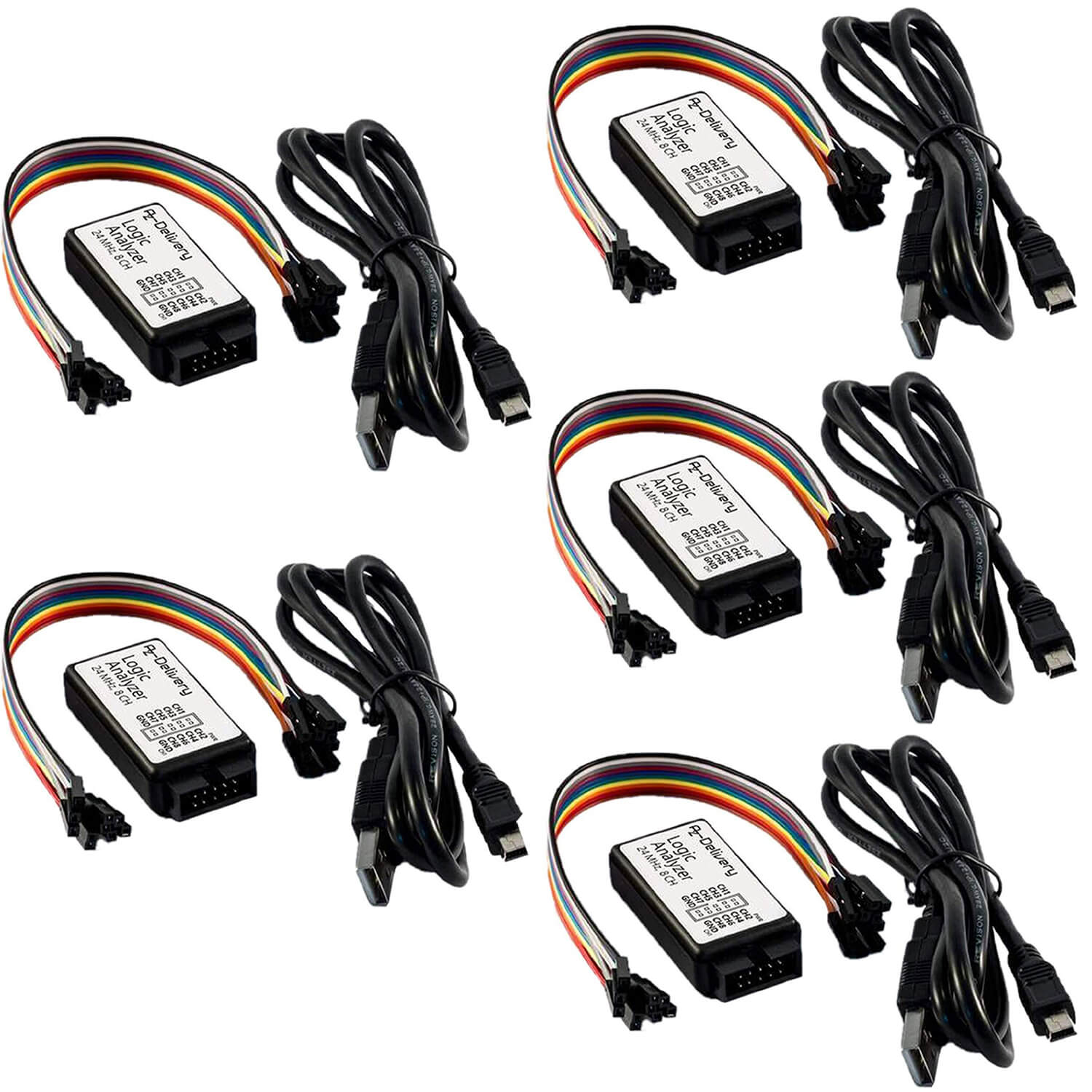

Select quantity discount: 1x Analyzer

Variant

Price:

€13.99

Tax included

Stock:

Sold out

Quantity:

✅ Bauweise am Original von Saleae angelehnt – kompatibel mit der Saleae Logic Analysesoftware und Open-Source-Programmen wie z. B. sigrok (Protokollanalyse von RS232, SPI, I2C, 1-Wire u.v.m.)

✅ 8 parallel messbare Signaleingänge (0-5 V) bei bis zu 24 Mio. Messschritten pro Sekunde!

✅ Maße (LxBxH): 55 x 28 x 14 mm

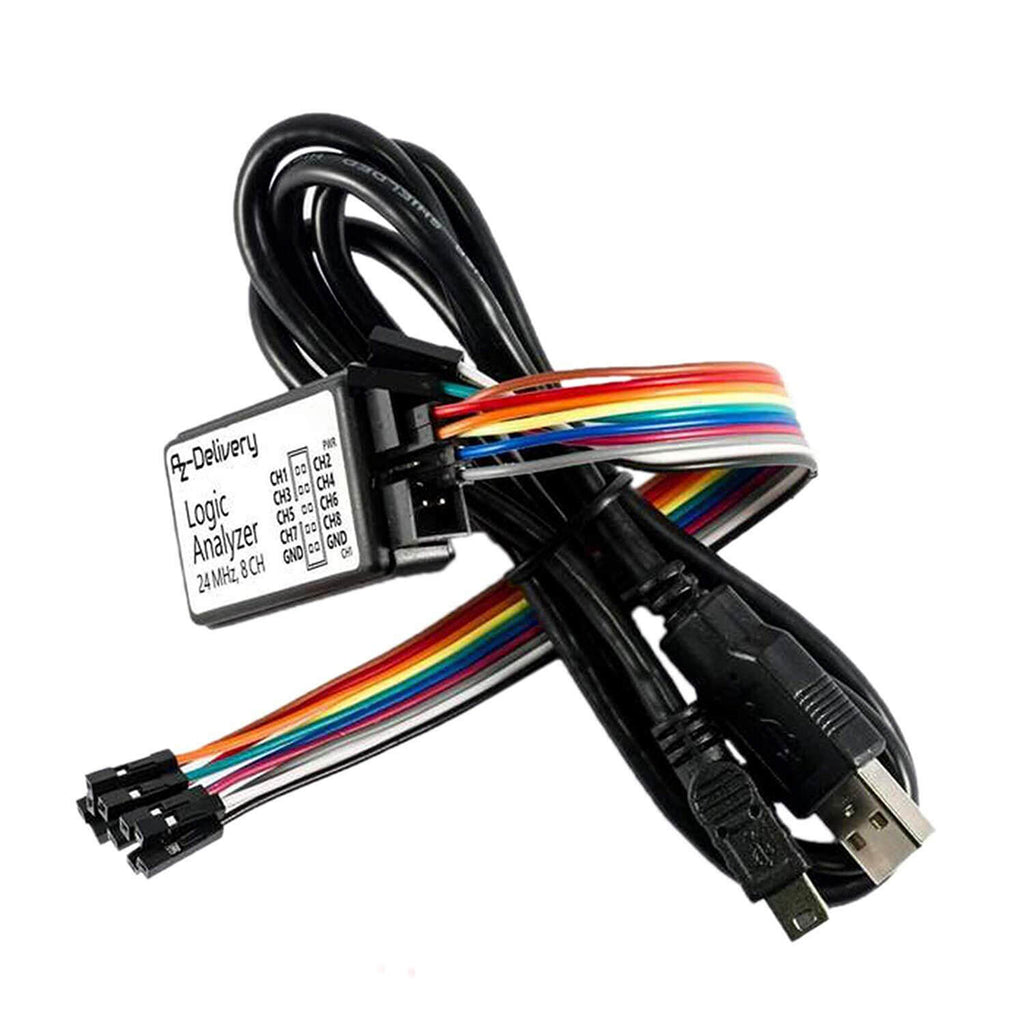

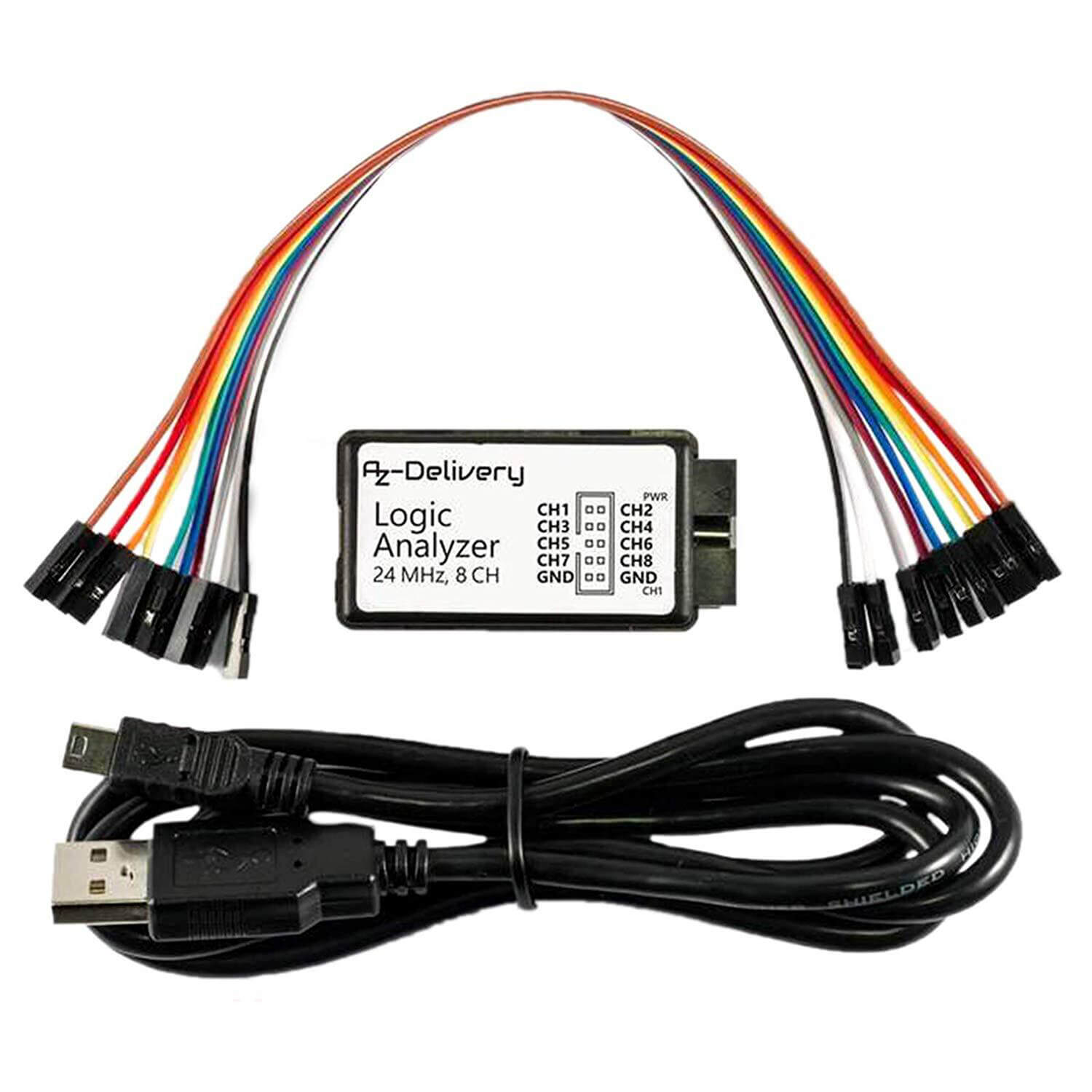

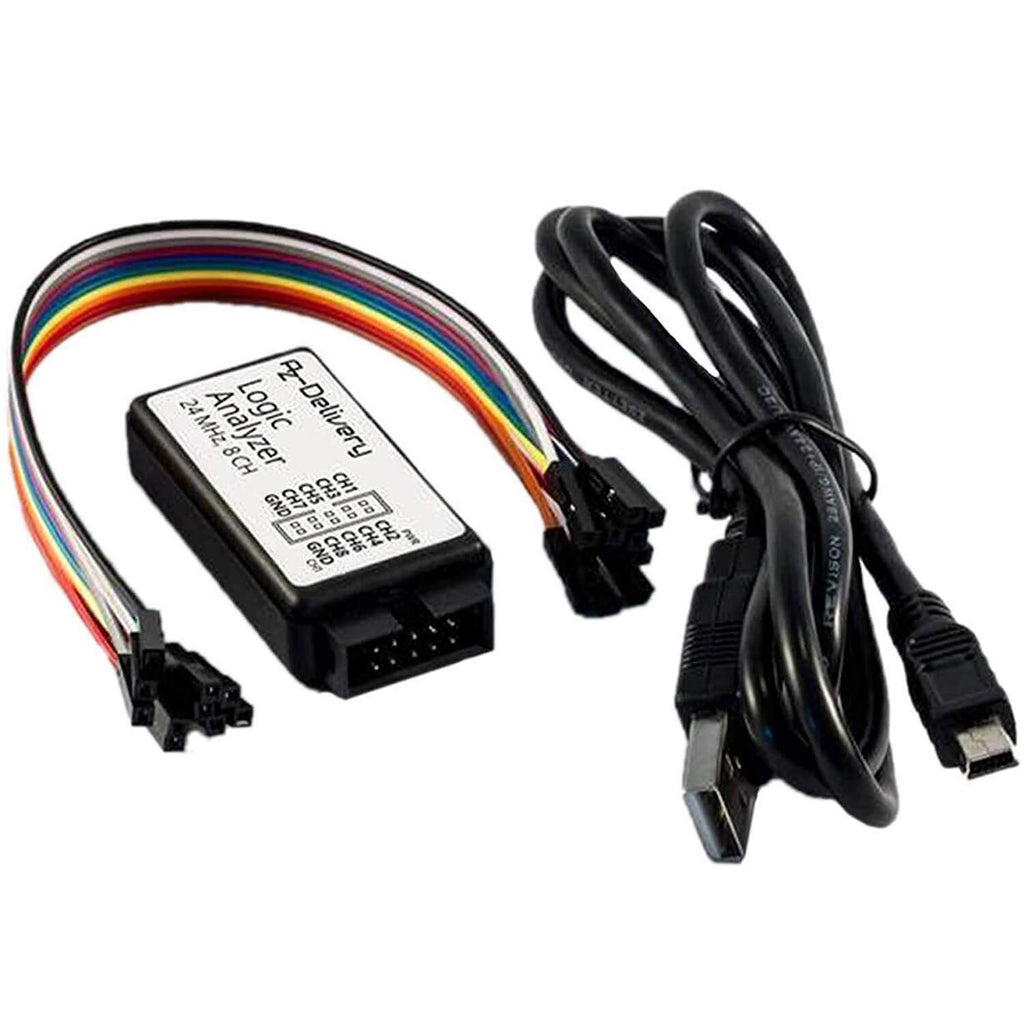

✅ Inkl. ca. 100 cm Mini-USB-Verbindungskabel und 10-poligem Flachbandkabel (20cm)

Important downloads and links

Datenblatt

Pinout

Arduino Libraries

Raspberry Pi Libraries

ROHS Konformitätserklärung AZ-Delivery Vertriebs GmbH

Deutsches eBook mit Einrichtungsanleitung

Share this product

The AZ-Delivery Logic Analyzer is an 8-channel logic analyzer. The device is connected to a PC via a USB port and uses the Saleae Logic software to record signals.

Bundled signals from data transfer protocols such as the serial connection, I²C or SPI are no problem. The measuring range of the Logic Analyzer is 0-5 volts, the threshold values for digital low and digital high are <0,8 V bzw. >2V.

Special features

Compact design with USB connection and very portable
Powerful, easy-to-use software
Edge and pulse width triggering
Protocol result filter and search
Measurements, bookmarks and timing markers

Technical data

Dimensions	55 x 28 x 14 mm
Channels	8 digital channels
Maximum scanning speed	24Msps
Maximum input voltage	0V to +5V
Operating temperature	0°C to 70°C
Input impedance	1MΩ ; 10pF
Supported protocol	SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2
PC connection	USB 2.0 High Speed

Simultaneous monitoring

The analyzer has 8 inputs - it can monitor 8 different digital signals simultaneously. This is sufficient for many microcontroller-based designs.

Quick Start Guide

When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
