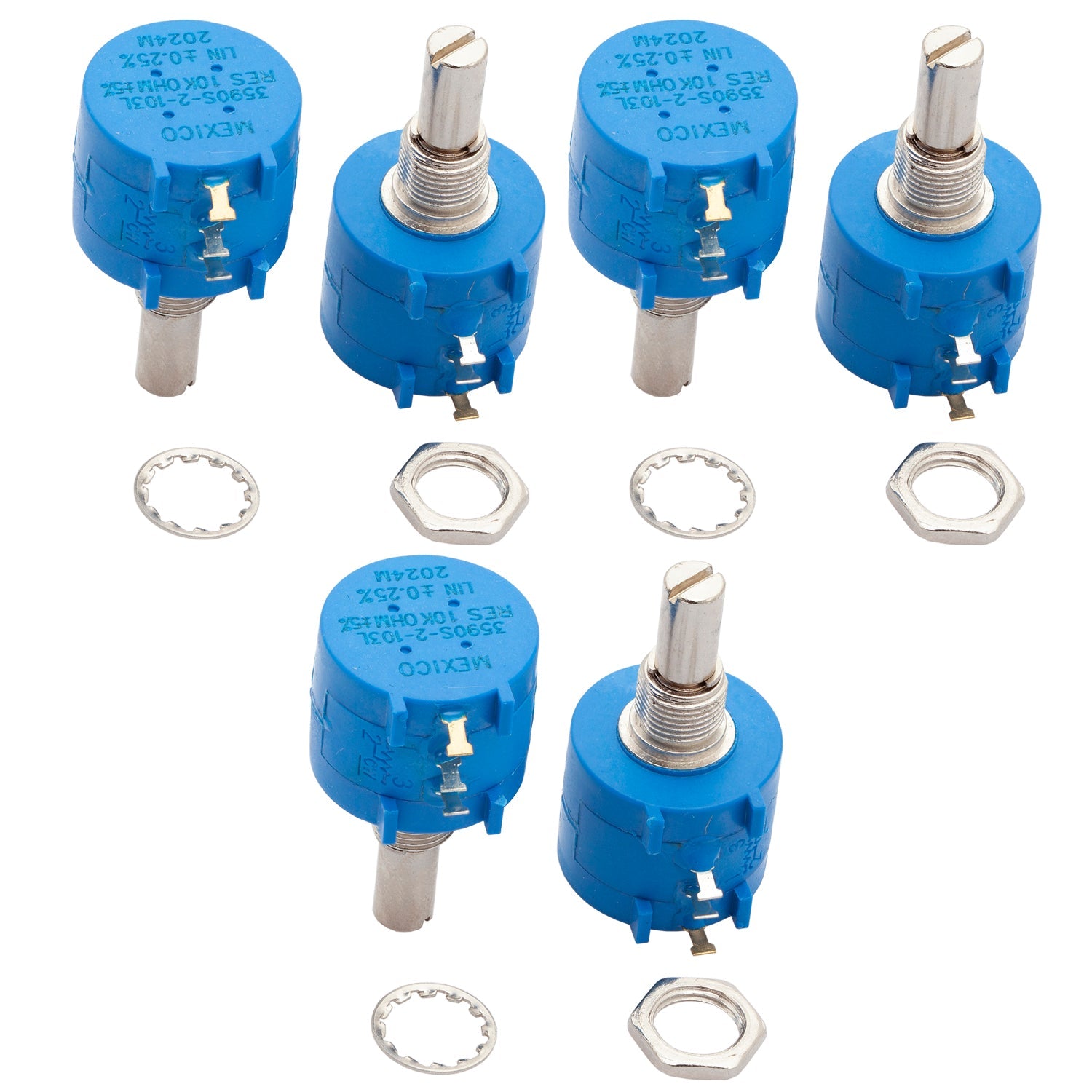

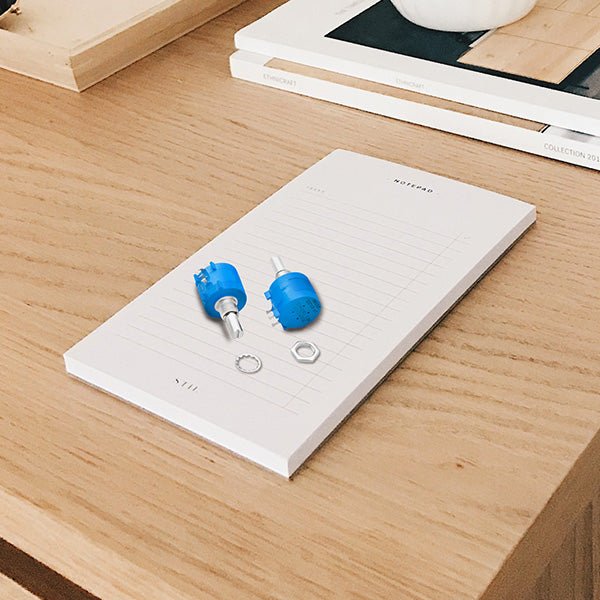

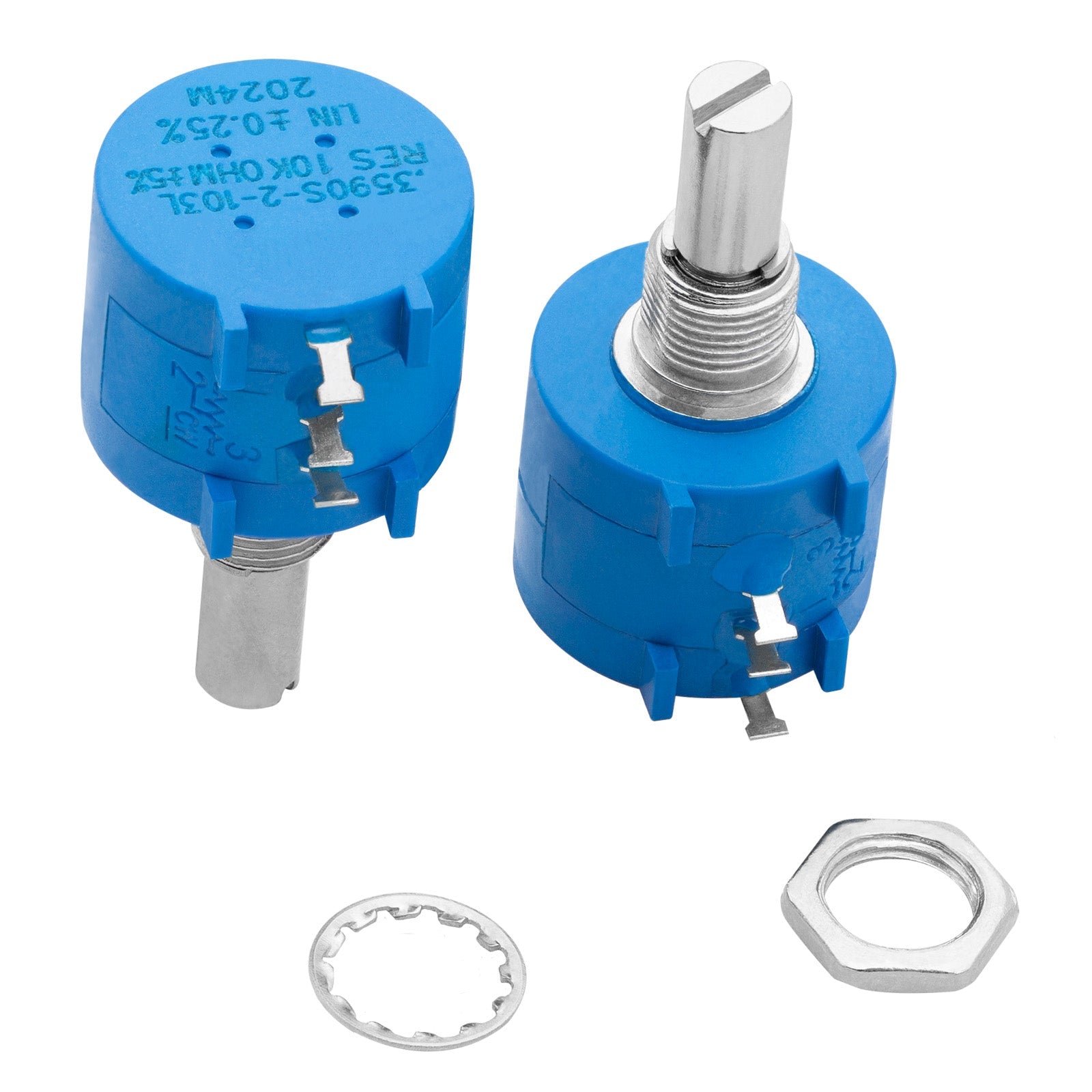

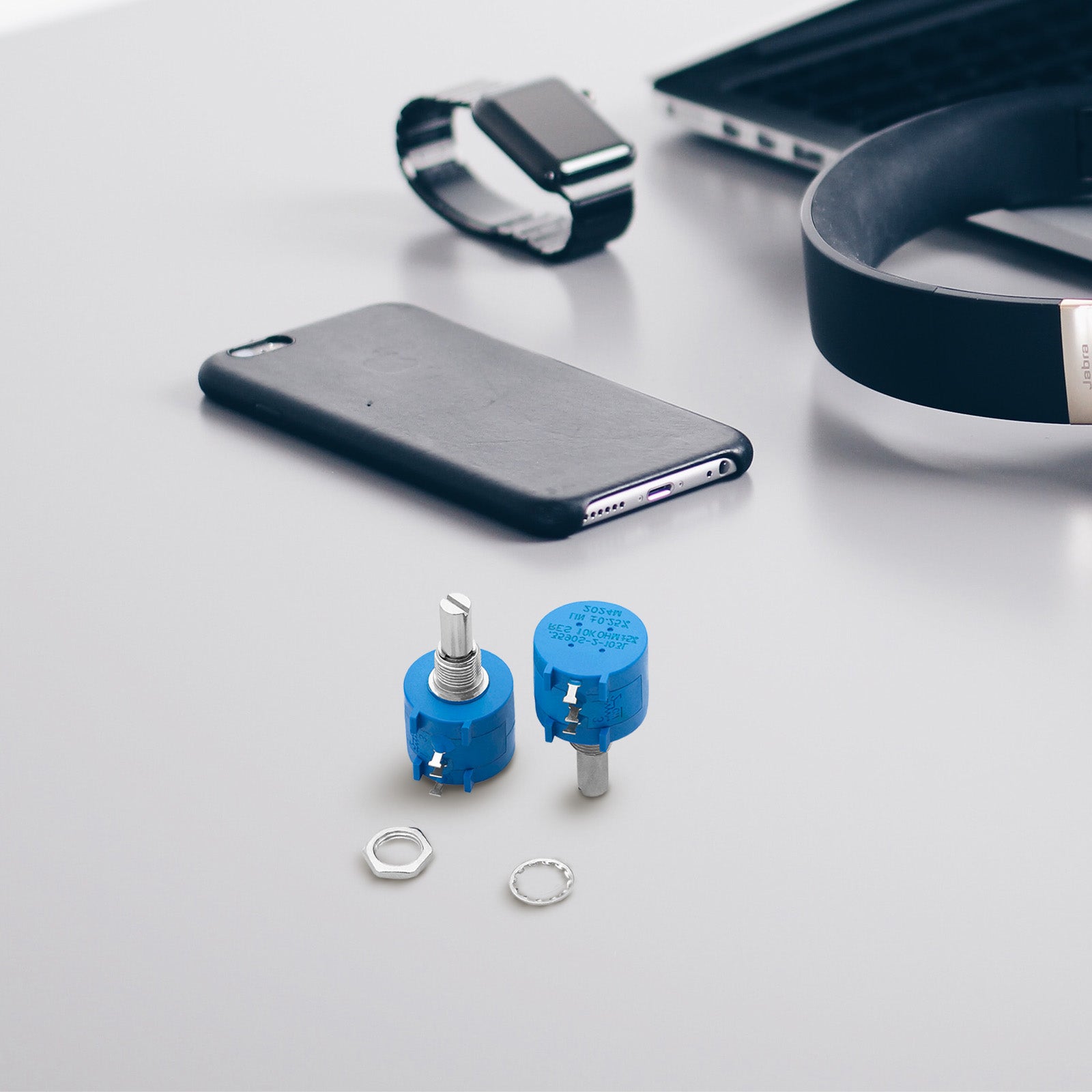

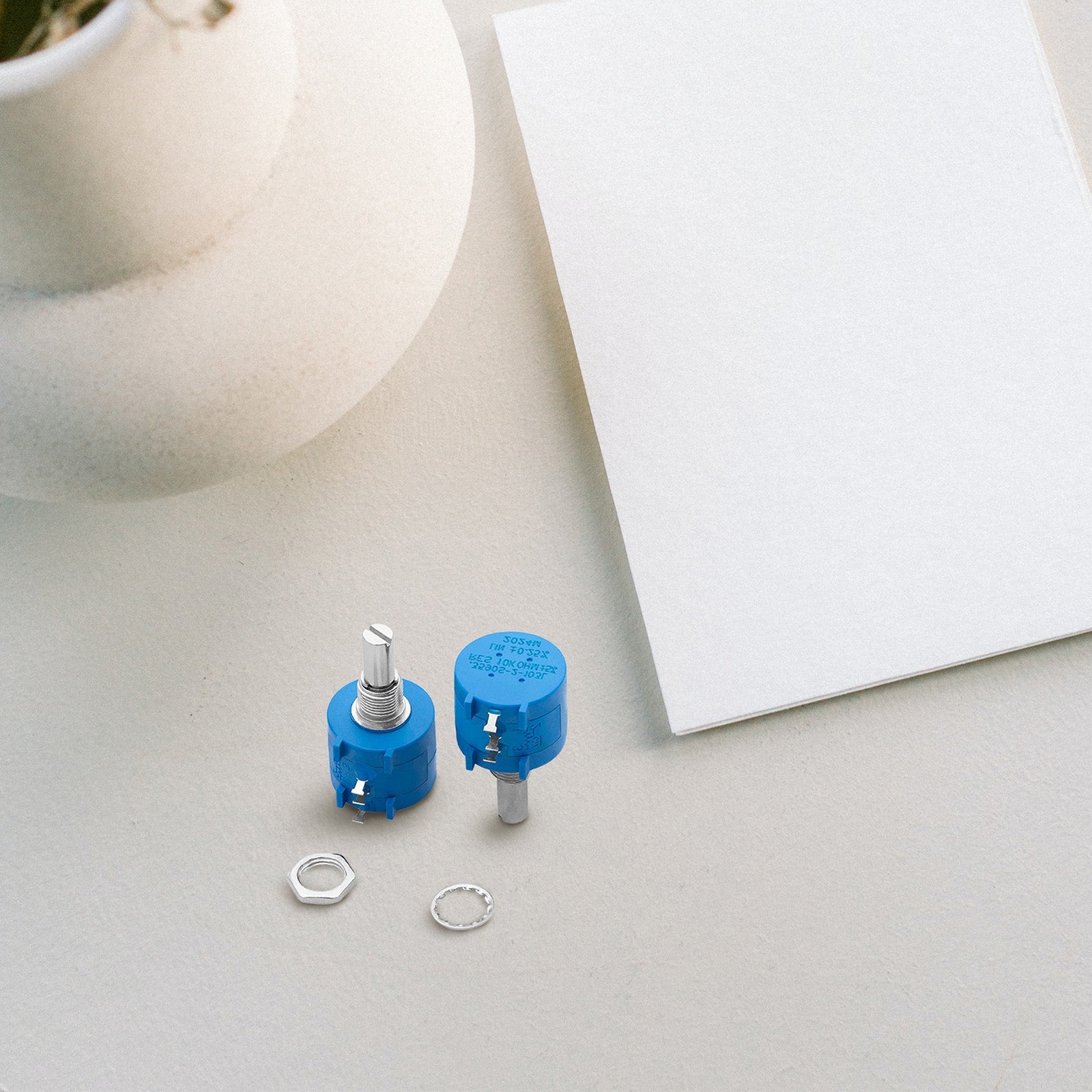

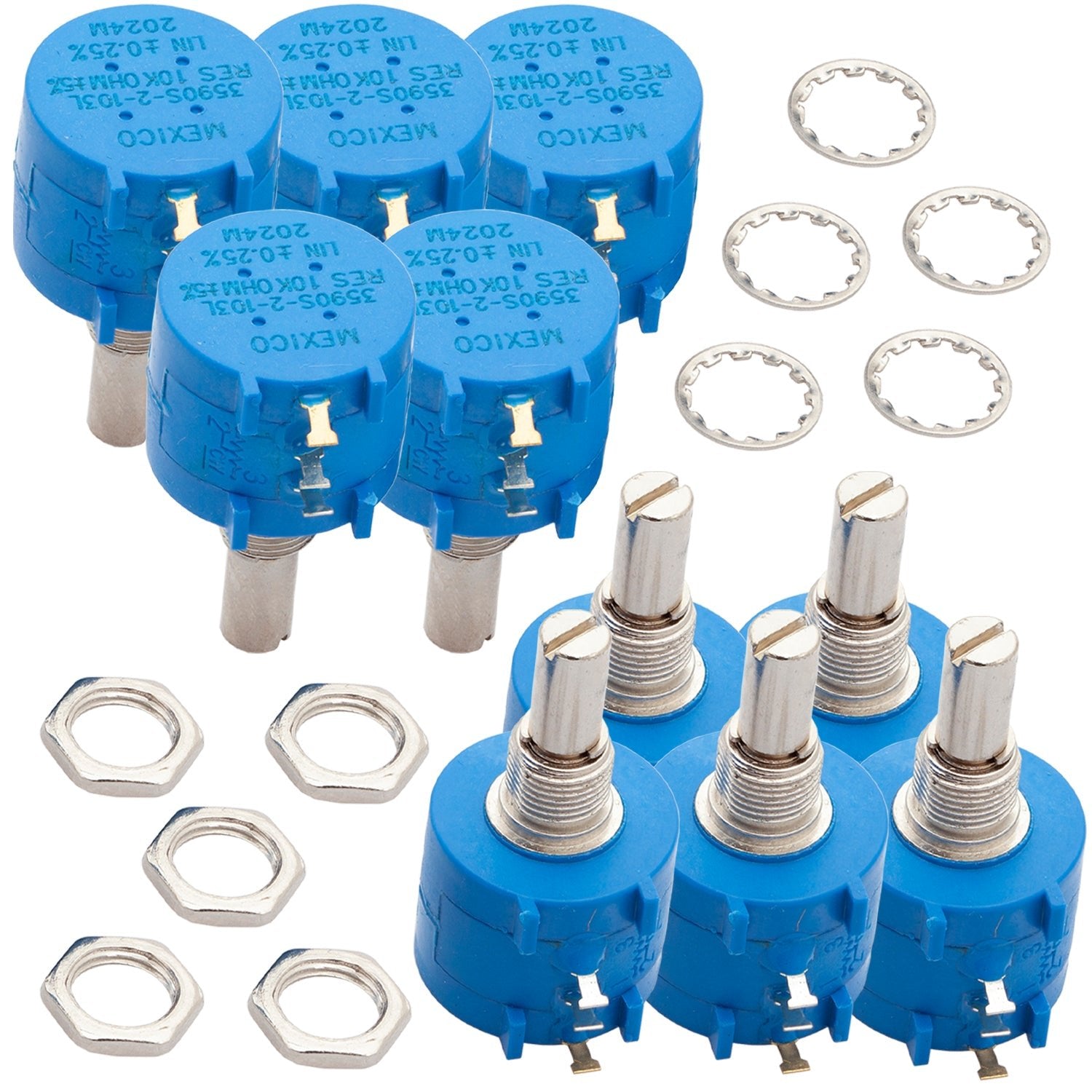

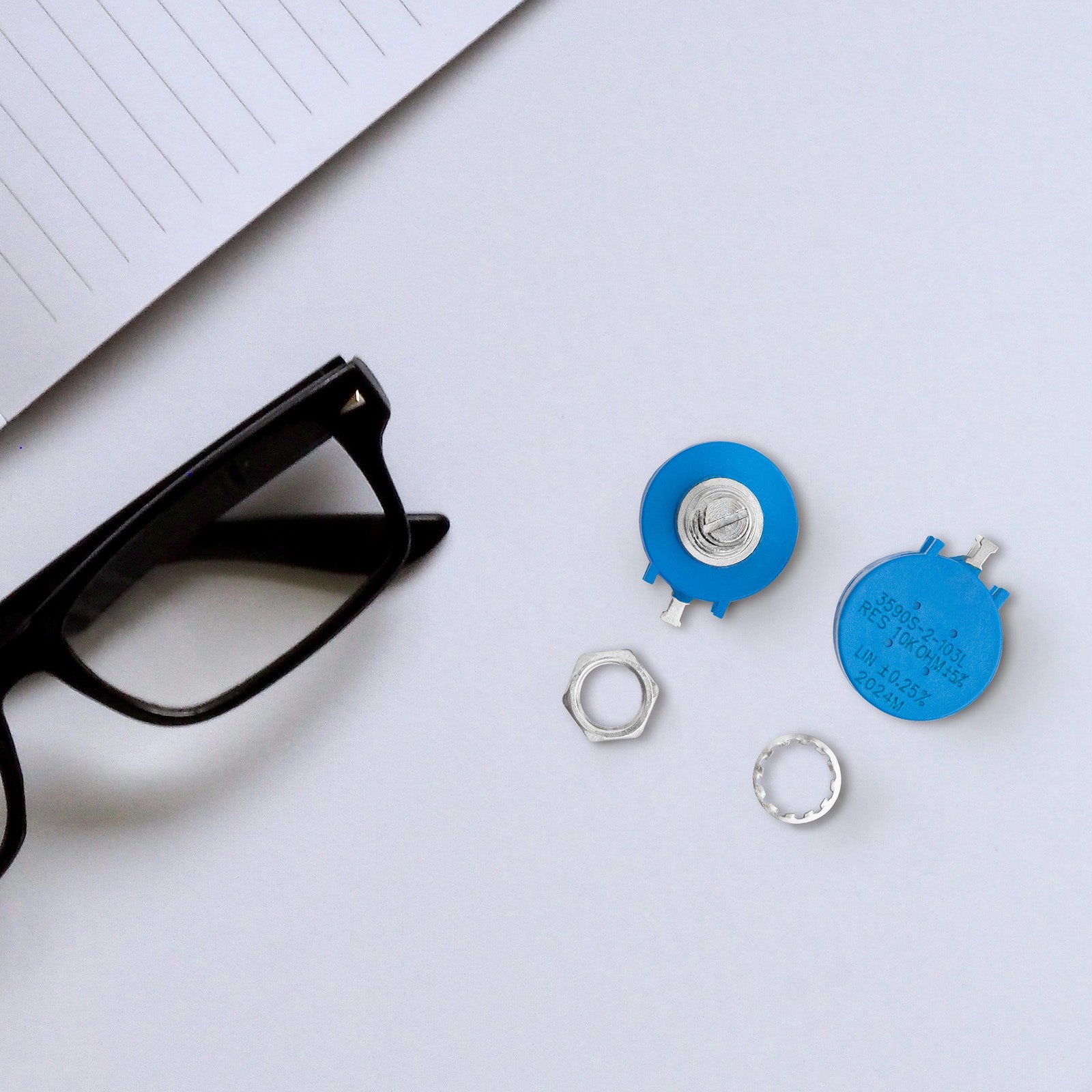

Multi-turn rotary potentiometer with protection resistor 3590S 10K ohm with adjustable resistance

Name: Multi-turn rotary potentiometer with protection resistor 3590S 10K ohm with adjustable resistance
Brand: AZ-Delivery
SKU: D 07-04
Price: 6.49 EUR
Availability: InStock

AZ-Delivery

Variant: 1x Set

Variant

Price:

€6.49

Tax included

Stock:

In stock (46 units), ready to be shipped

Quantity:

✅This high-quality Multi-Turn Poti 3590S-2-103L has a high resistance tolerance that is sufficient for versatile projects.

✅ Thanks to the fine materials, this potentiometer set is versatile and long-lasting. It has a lifetime of 1000 hours. of 1 million rotations

✅ The plastic housing helps with storage during transport and also at home in the accessory set.

✅ The combination of carbon foil and metal ensures the resistance of the product and makes it possible to use it in numerous projects.

Important downloads and links

Datasheet

Share this product

Independent linearity accuracy makes this module a good choice for your electronics project. High precision combined with modern and user-friendly design makes this product easy to use.

Special Features:

Resistance: 10K Ω
Windings: 10 windings
Shaft diameter: 6.3mm, mounting hole: 10mm
Resistance tolerance: ±5%, independent linearity accuracy: ±0.25%.
Lifetime: 1,000,000 revolutions

Technical data

Revolutions	10
Lifetime	1.000.000 revolutions
Power	2W
Resistance value	10K Ohm
Resistor tolerance	± 5%
Linearity	± 0,25%
Shaft diameter	6mm/0.24"
Thread diameter	9mm/0.35"
Total length	40mm/1.6"
Lifetime load	1000 hours
Mechanical angle	3600 ° ± 10 °
Operating temperature range	-55 ° - 125 °
Size (without hearing wave)	22x1 9mm/0.9 "x 0.7"(DxH)
