Description

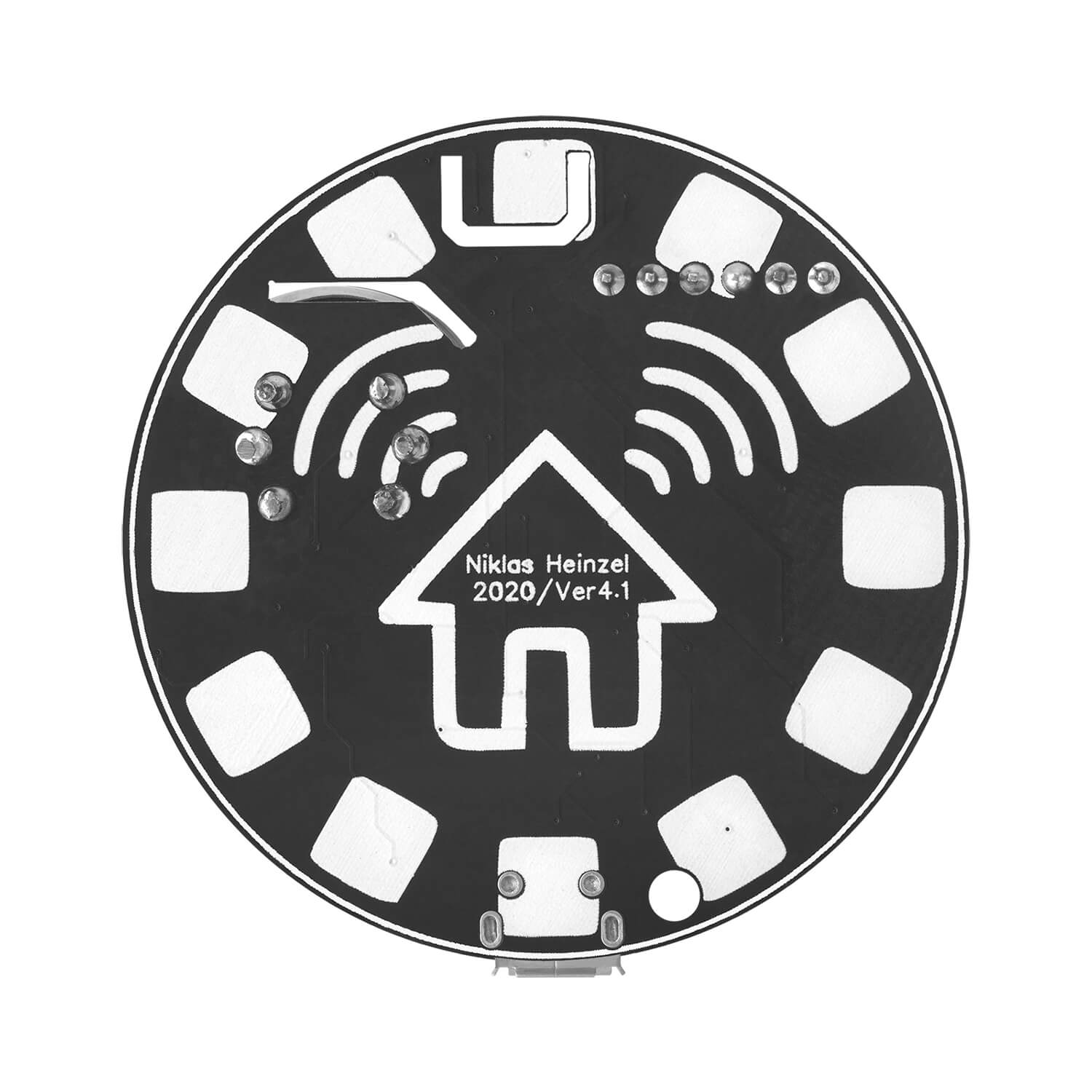

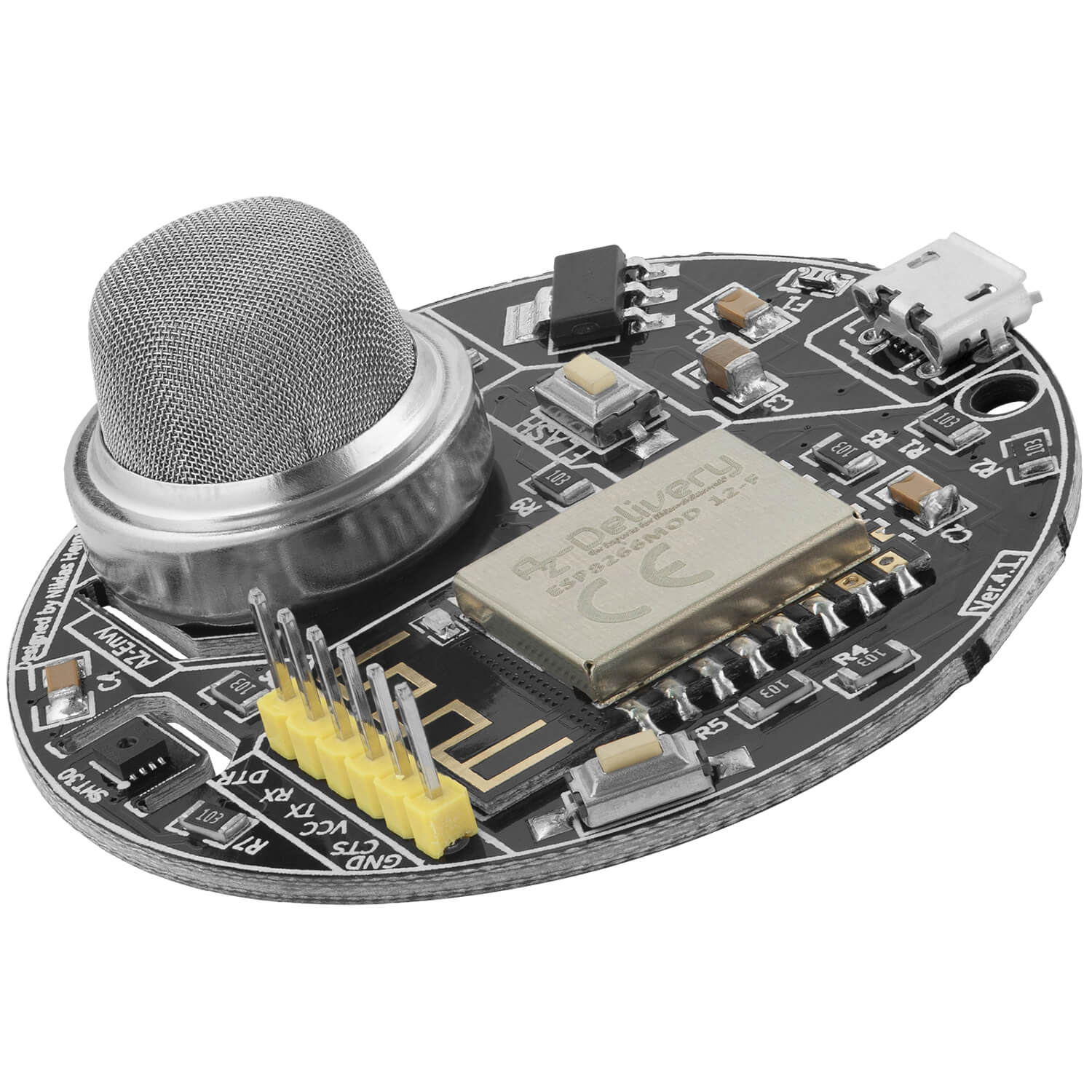

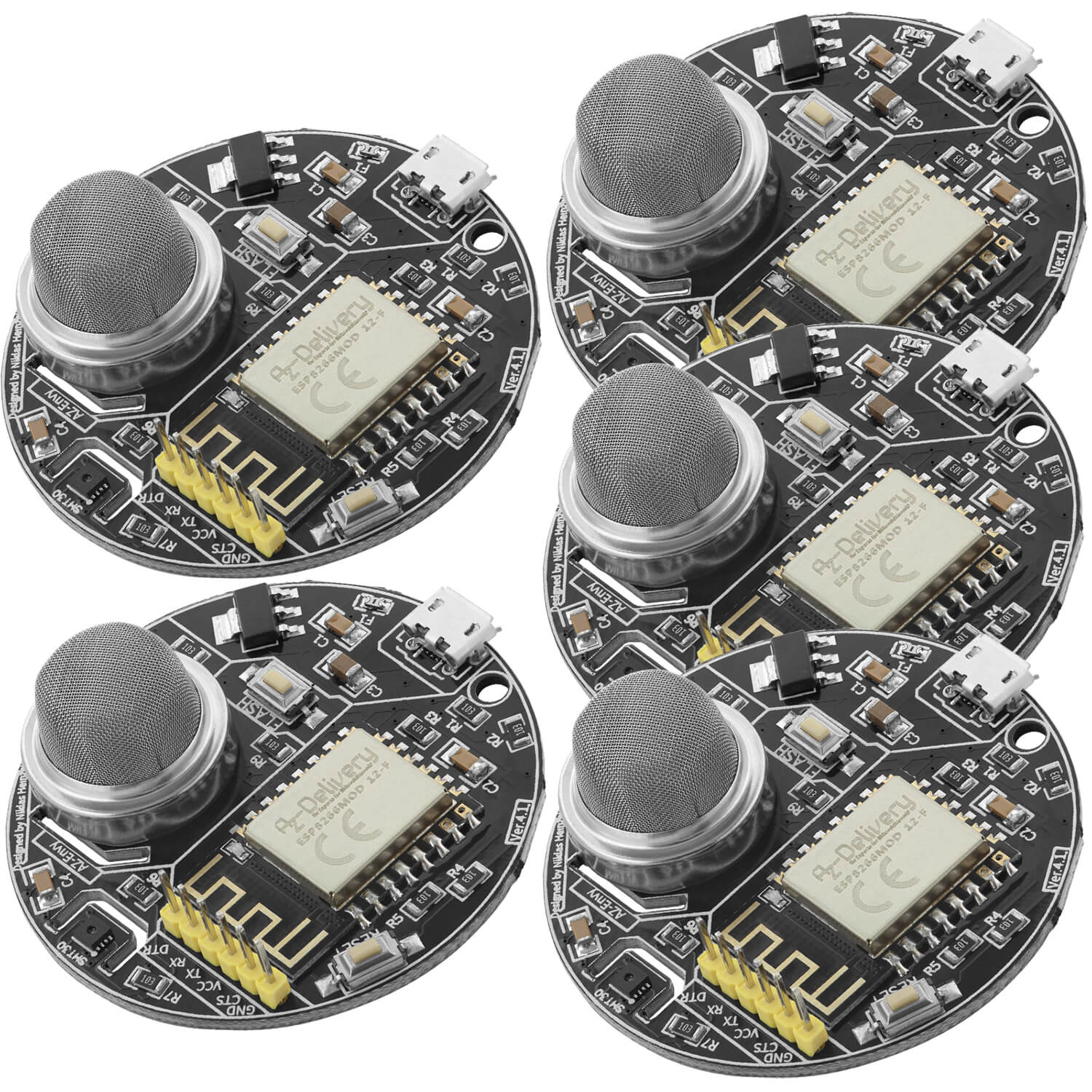

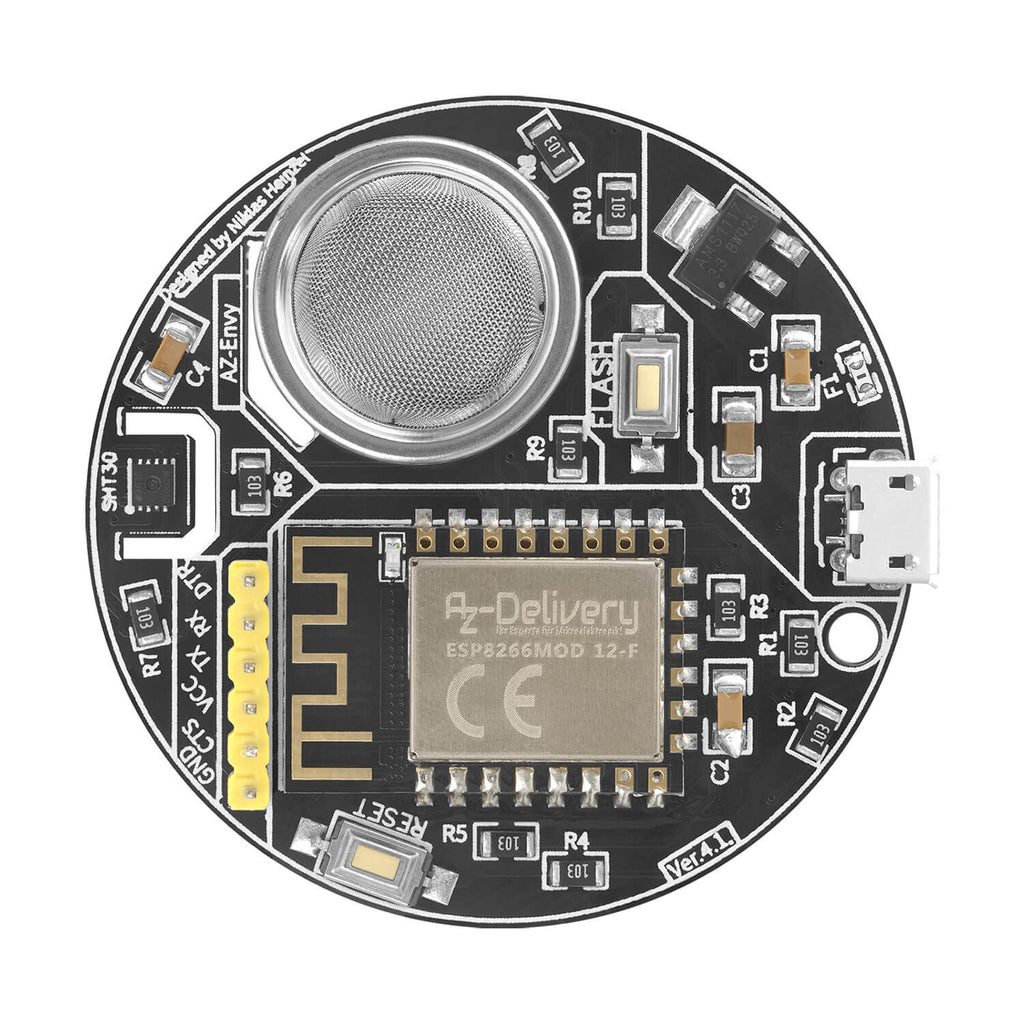

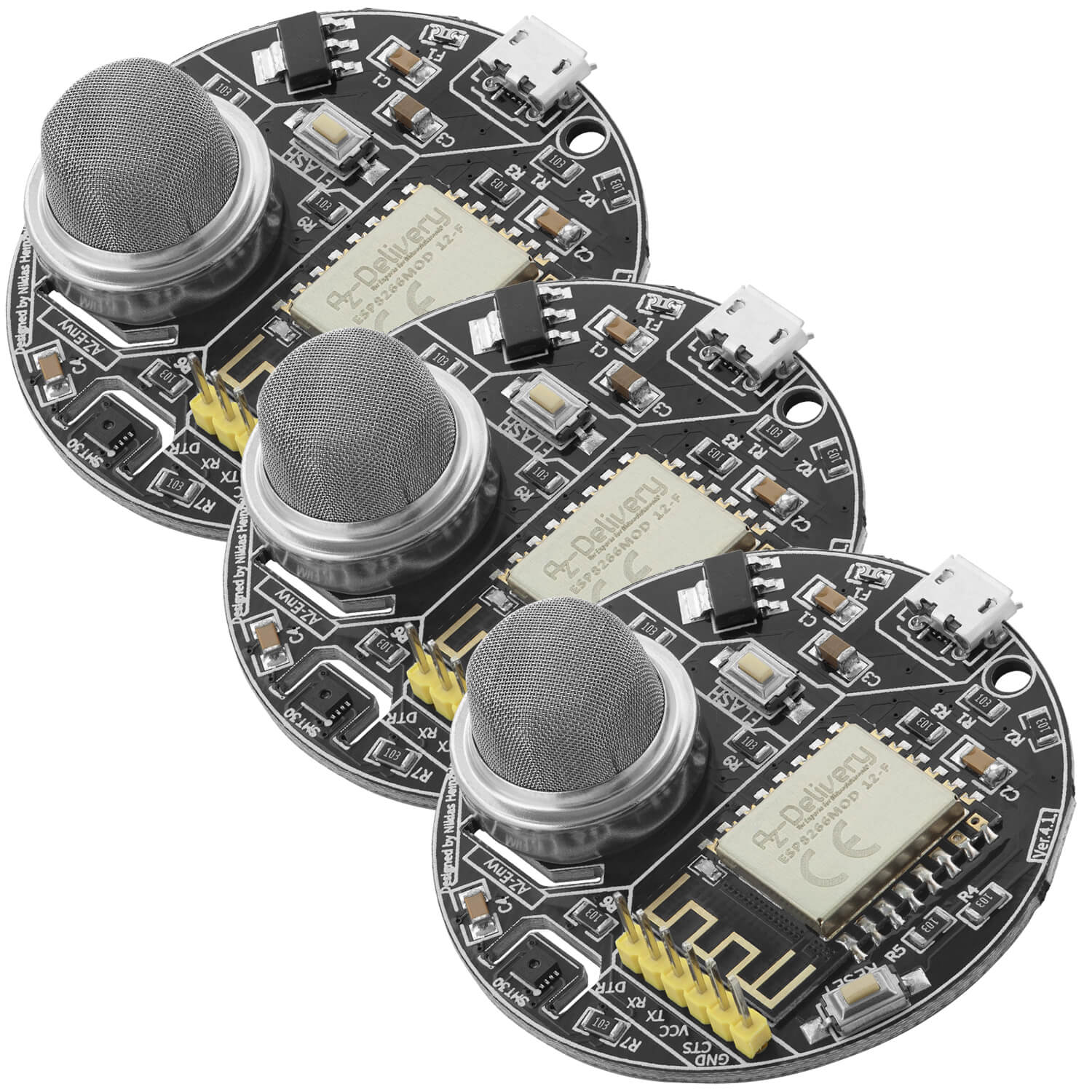

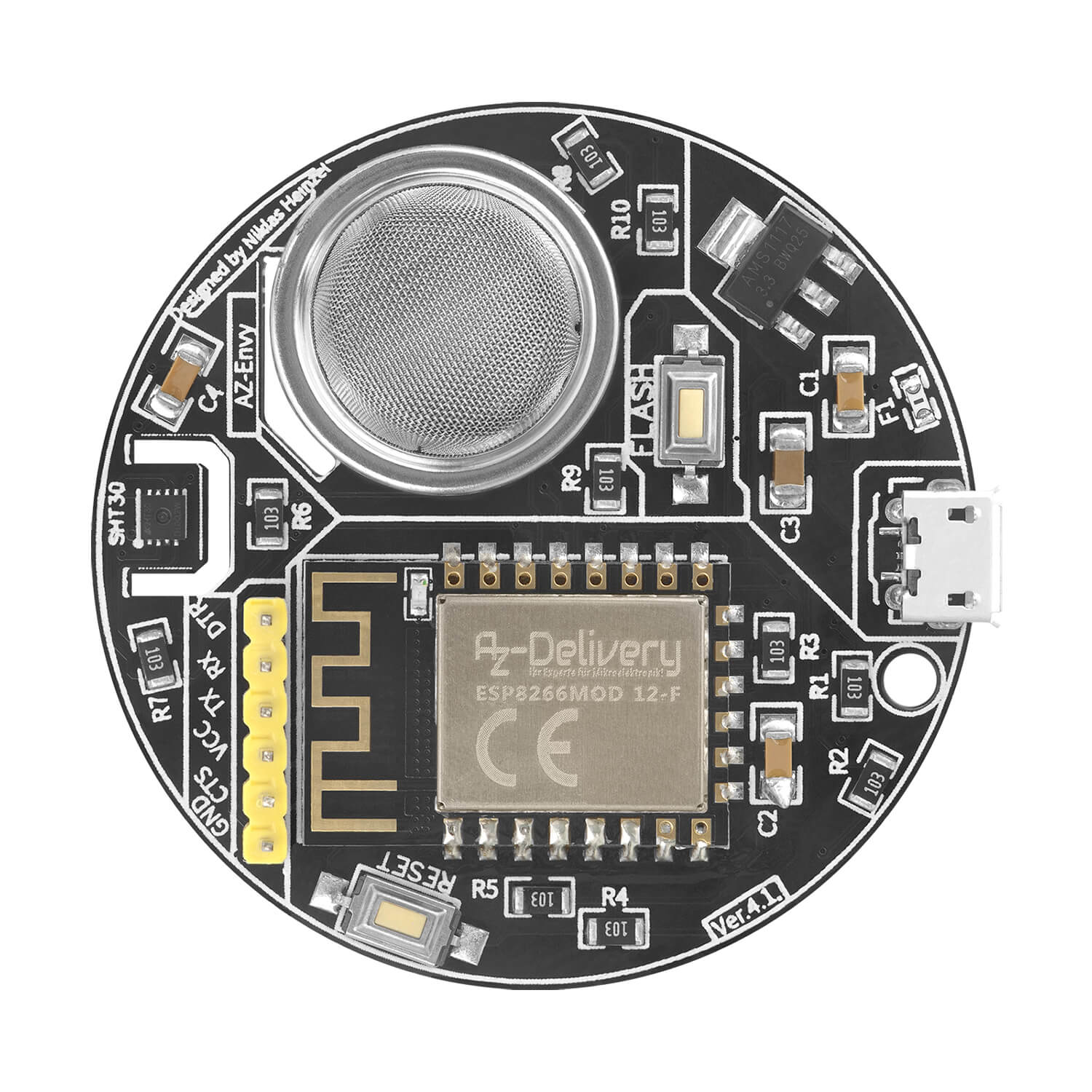

AZ-Envy Is one on the ESP8266-12F based developer board, especially for the simple introduction to the world of IoT.
The board offers a variety of possible uses for maker, hobby handicrafts and engineers, such as use as a weather station with data transfer to Google Firebase, gas meters, mold protection, garden house monitoring and much more.
- Measurement of temperature (° C) and humidity (%)
- Measurement of ambient gas and air quality in ppm
- Variable power supply from 3V to 11V via micro USB
- Programming via FT232RL interface
ESP8266-12F chip:
- 802.11b/g/n Wi-Fi-Sooc module with a power-saving 32-bit CPU (standby 0.02mA) and with up to 160 MHz clock frequency
- Built-in high-precision 10-bit adc
- Programmable via an FT232RL interface
MQ-2 sensor:
- Increase in conductivity with increased gas concentration
- Thanks to its high sensitivity, ideal can be used as a domestic gas leaf detector, as a portable gas detector or for measuring flammable gases
- Long lifespan and low costs
Temperature and moisture sensor SHT30:
- Accuracy of the relative humidity ± 2%
- Temperature accuracy ± 0.2 ° C
- 14 Bit measuring resolution
- I2C interface (connected to SDA and SCL)
The micro USB socket of the AZ-Envy serves the power supply. To program the microcontroller chip, you need a separately available USB to serial adapter such as our FT232RL module.
