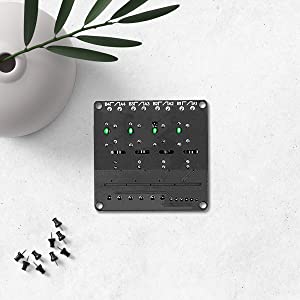

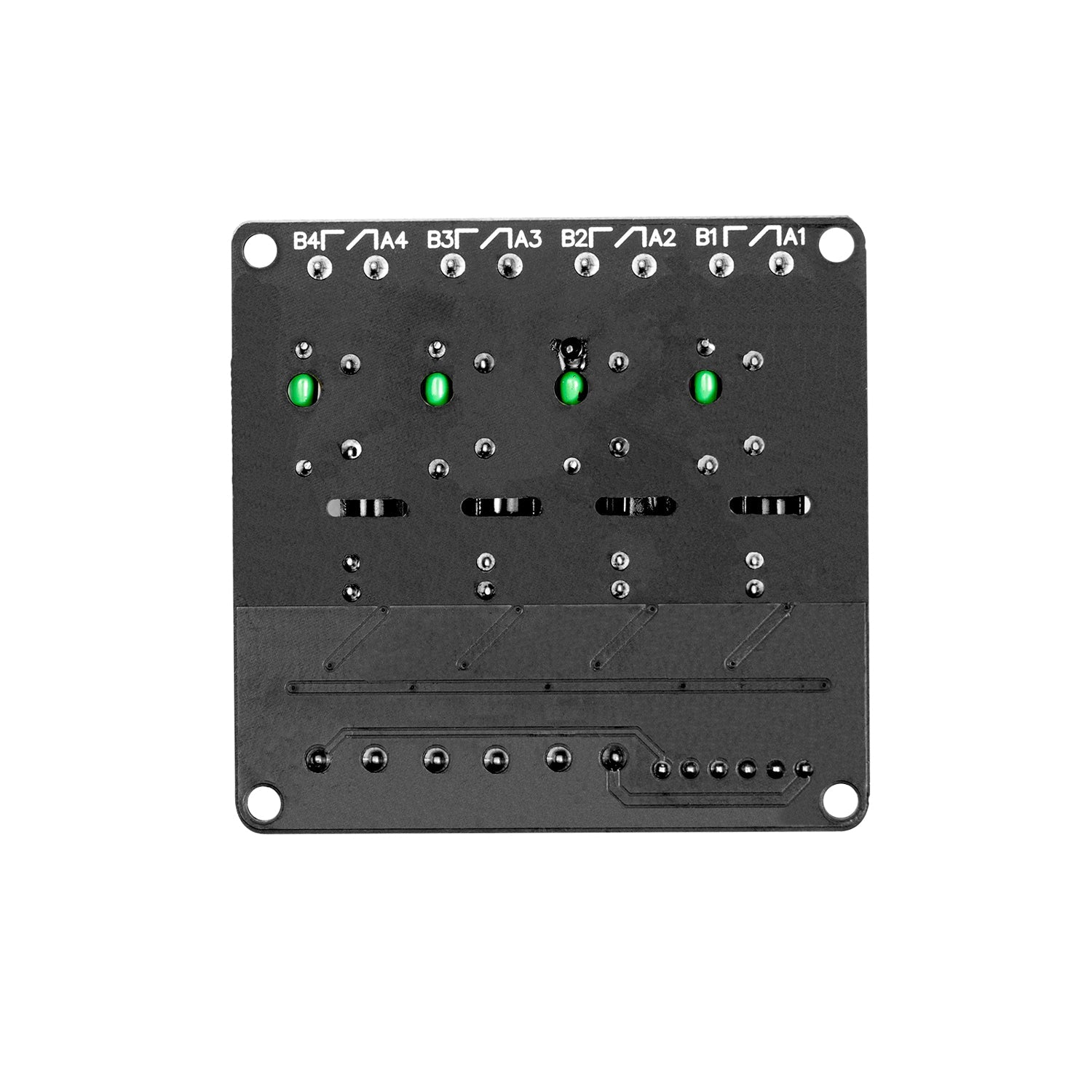

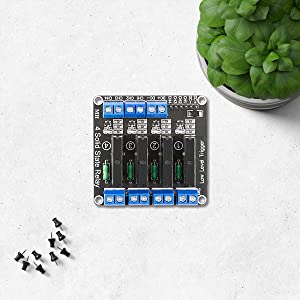

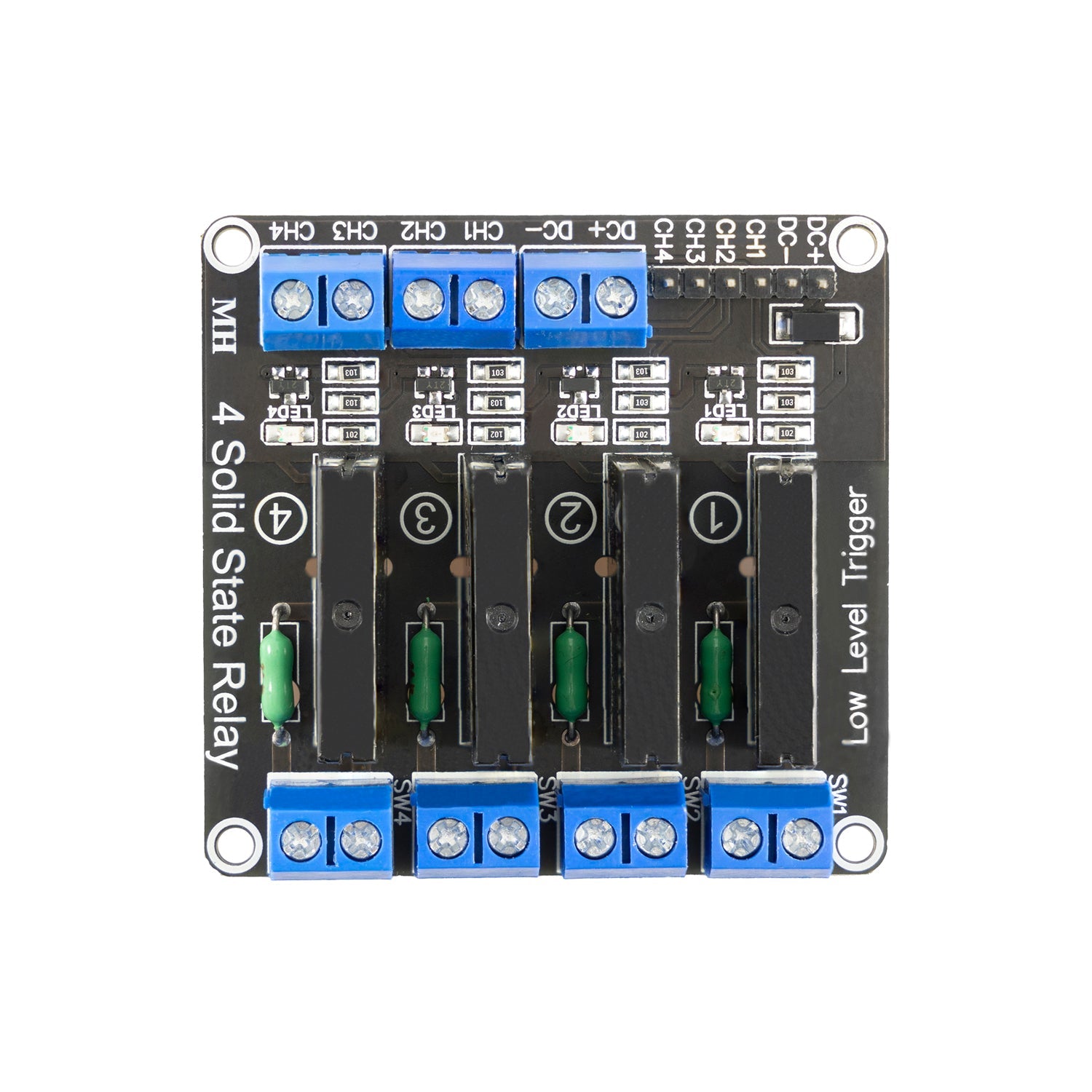

4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi
Roll over image to zoom in Click on image to zoom
4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi

4 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi

AZ-Delivery
Select discount: 1x set
Price:
€9.99

Tax included

Stock:
In stock (79 units), ready to be shipped

✅This 4-channel relay circuit board has a quick switch and a strong anti-interference function. The high-quality components ensure a long-lasting and stable performance.
✅The solid-state relay with fuse ensures the safe use of the module.
✅Our module uses a low-level-signal-trigger mode.
✅The operating voltage of this relay is 5V DC.

Important downloads and links

Description

The 4 channel solid state relay (SSR) is free of moving parts thanks to solid state technology. As a result, this relay is faster and more reliable than a traditional magnetic relay. The specific design of these relays allows for a load of 100-240V AC with a current rating of 2A. In addition, each output is protected from overload By a pico fuse. The use of a low-level trigger makes this relay compatible with all microcontrollers with at least a 3.3V logic level.

Features:

  • Small and practical
  • Size: 57 x 55 x 23mm
  • Net weight: 36.6 g
  • Easily applicable in many Arduino and Raspberry Pi projects
  • The screw terminals are well labeled.

Technical features:

Dimension 57 x 55 x 23mm/td>
Weight 36.6 g
Supply voltage 5V
Trigger Low level trigger
Switch voltage 100-240 V AC
Switching load current 2A
Module life 10 million times

Practical high performance module:

Compared to the traditional mechanical relay, the solid state relay (SSR) has many advantages: It has a longer life, a much higher turn-on and turn-off speed, and is noiseless

High quality:

Go for high quality in your relays and use the solid state relays from AZ-Delivery.
