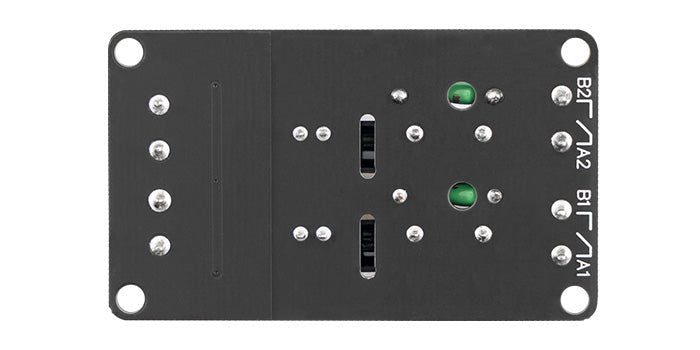

2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi
Roll over image to zoom in Click on image to zoom
2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi

2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi

AZ-Delivery

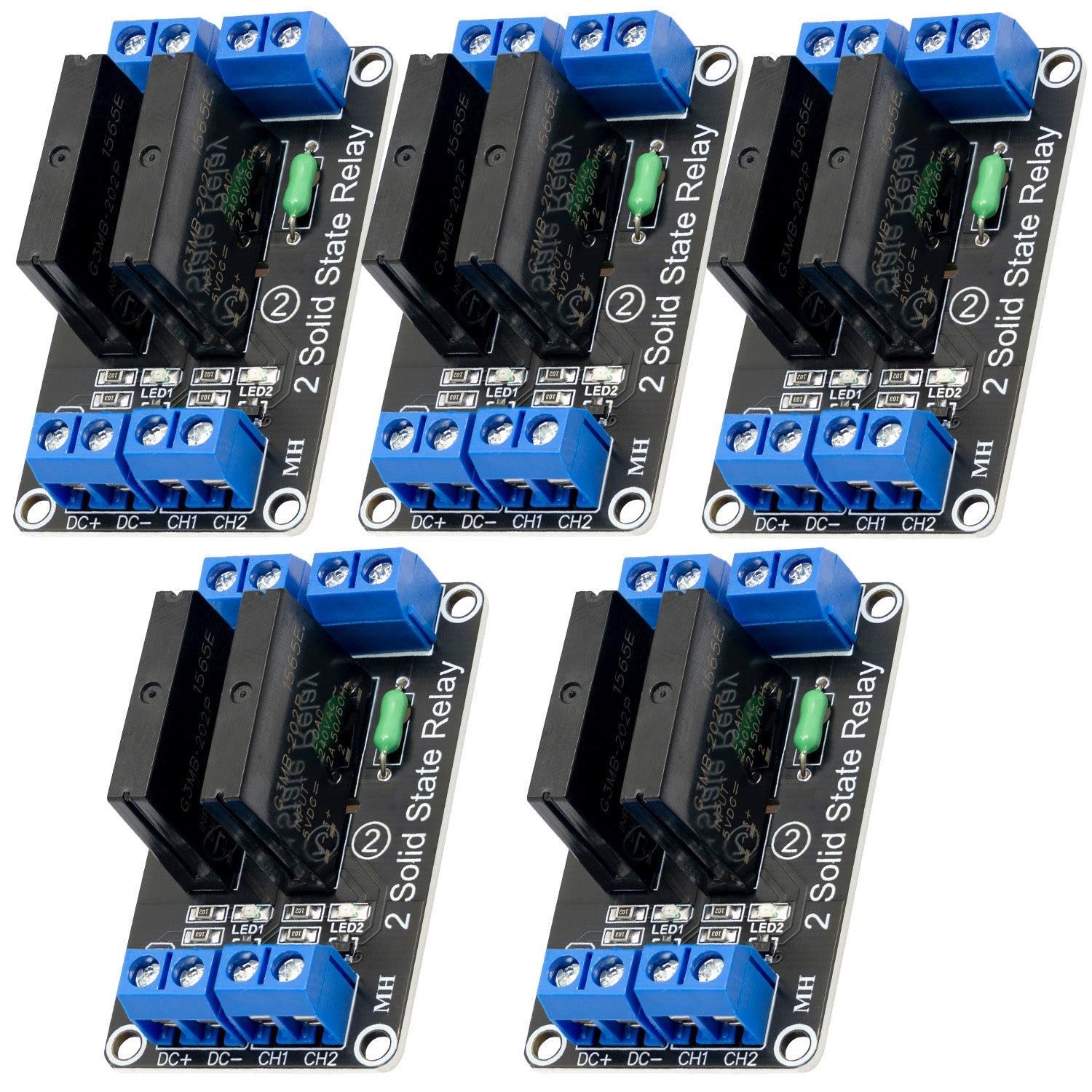

Select discount: 1x Set
Price:
€7.99

Tax included

Stock:
Only 1 unit left

✅ This 2-channel relay board has a fast switch and a strong anti-interference capability. The high-quality components, which are integrated in a small housing, ensure a stable performance.
✅ The solid-state relay with fuse ensures the safe use of the module.
✅ Our module uses a low-level-signal-trigger mode.
✅The operating voltage of this relay is 5V DC.

Important downloads and links

Description

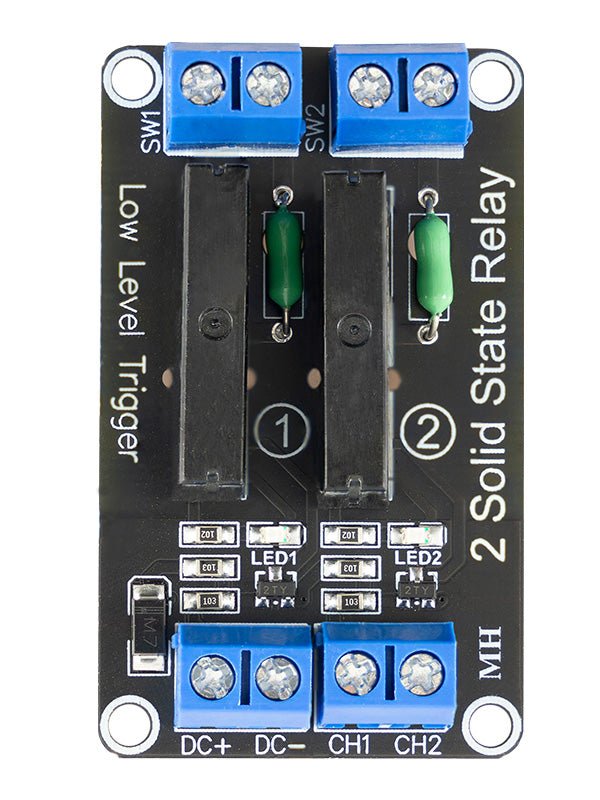

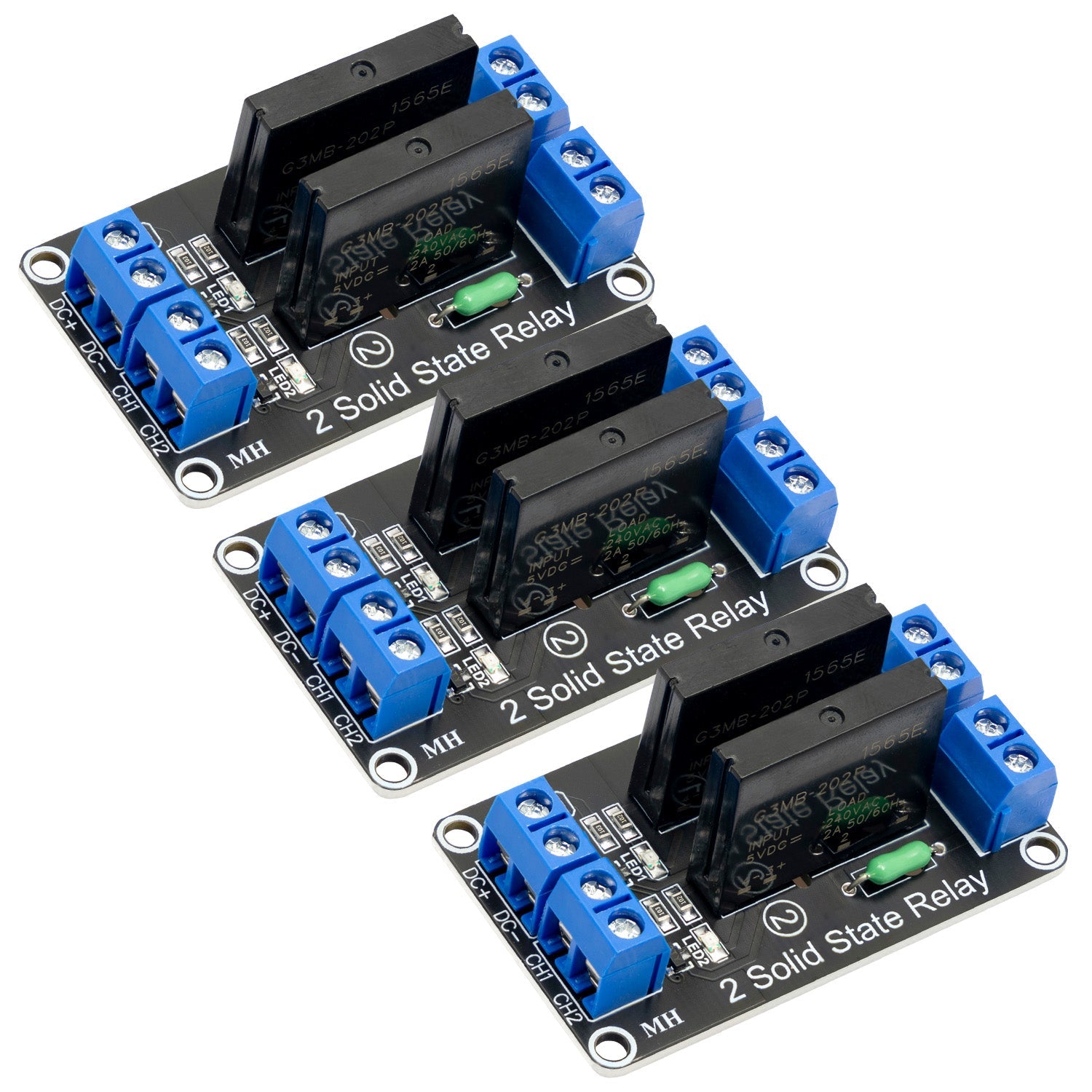

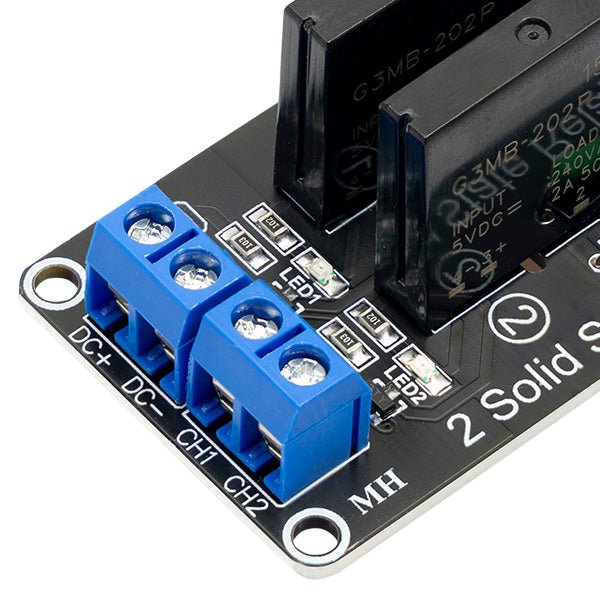

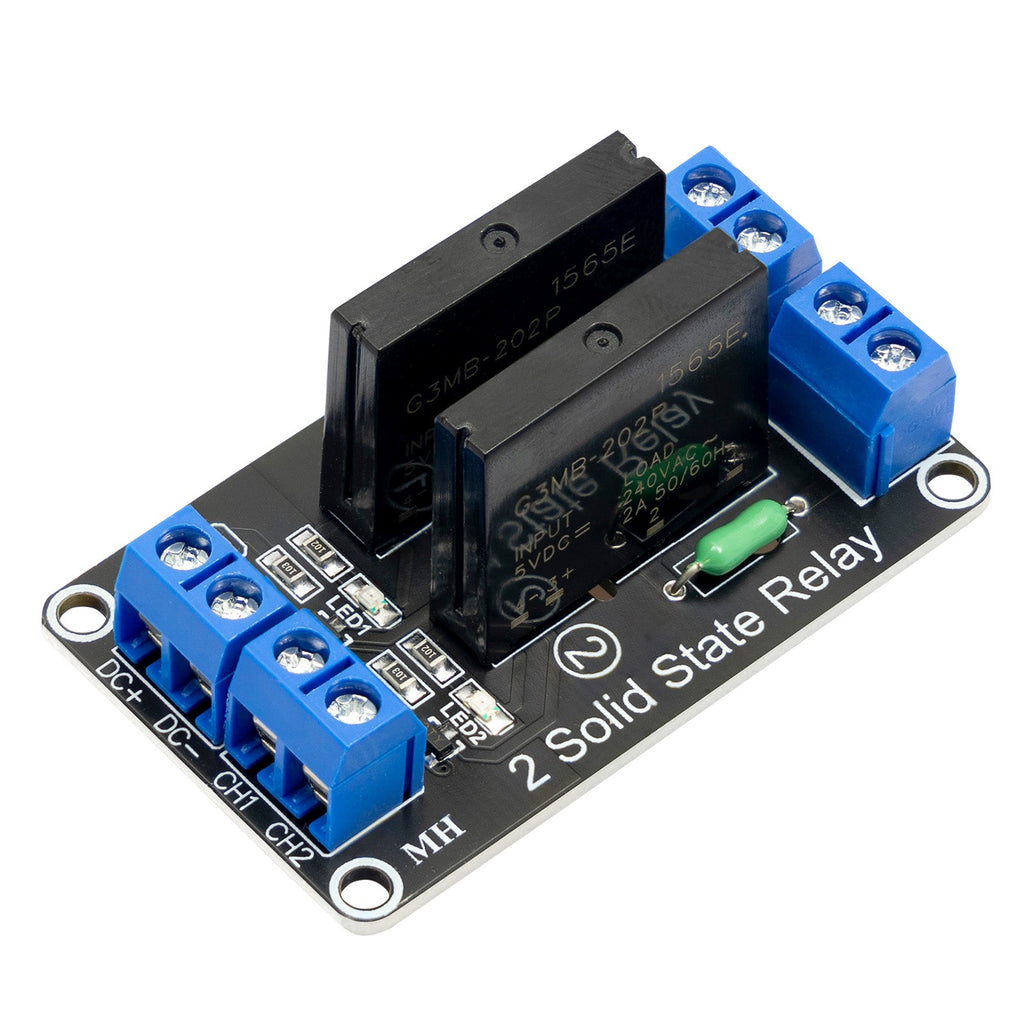

The 2 channel solid state relay (SSR) is free of moving parts thanks to solid state technology. As a result, this relay is faster and more reliable than a traditional magnetic relay. The specific design of these relays allows for a load of 100-240V AC with a current rating of 2A. In addition, each output is protected from overload By a pico fuse. The use of a low-level trigger makes this relay compatible with all microcontrollers with at least a 3.3V logic level.














Technical features:

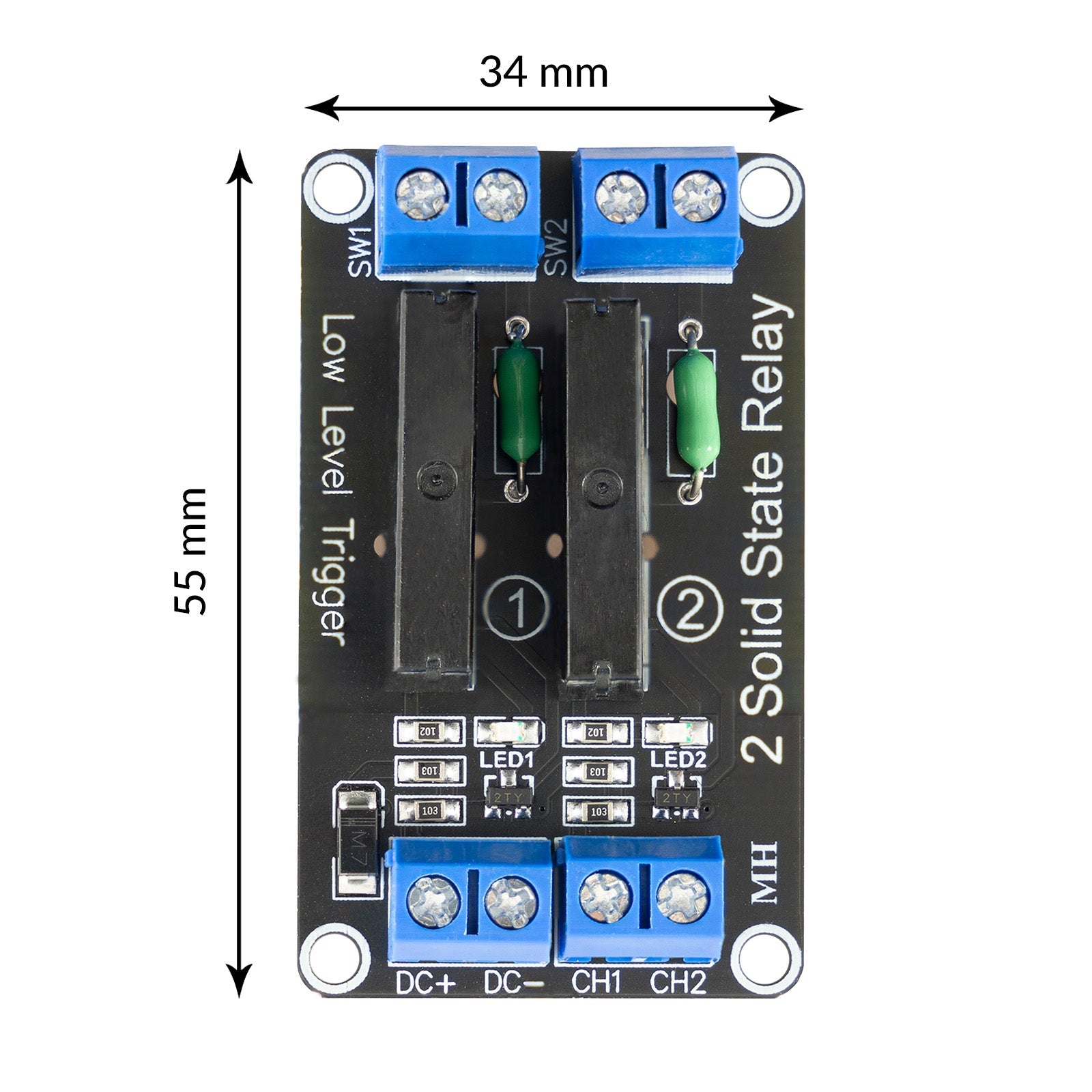

Size 55 * 33 * 25mm
Weight 21.5 g
Supply voltage 5V
Trigger mode Low level trigger
Static voltage 0mA
Load current 2A
Maximum operating current 48.8mA
Module lifetime 10 million times

Practical high performance module:

Compared with the traditional mechanical relay, the solid state relay (SSR) has many advantages: It has a longer life, much higher turn-on and turn-off speed, and is noiseless.

High quality:

Go for high quality in your relays and use the solid state relays from AZ-Delivery.
